| Range of Detection, yd / m (Object (Human = 1.7*0.5m) | 1475/1350 | | Power Supply | 3-4.2V | | Stream Vision support | Yes | | Auto Power Off | No | | Range of Detection, M\n,Function Display-Off | Yes | | Range of Detection, M\n,Color palette | Yes | | Range of Detection, M\n,Inversion | Yes | | Range of Detection, M\n,Rangefinder | Yes | | Focusing Type of Distance | External | | Diopter Adjustment | +5 to -5 | | Diameter, Exit Pupil | 5mm | | Eye Relief, mm | 16 | | Battery Type | B-Pack (18650 Li-ion) | | External Power Supply | 5B-USB | | Operating temperature, F/C | -13 to 122 / -25 to 50 | | Weight, oz | 15.9 | | Height (in/mm) | 2.3/58 | | Width (in/mm) | 2.2/55 | | Length (in/mm) | 8.9/226 | | Remote Control | Yes | | Calibration | Manual, automatic, and semi-automatic | | Level of Protection (acc. to IEC 60529) | IPX7 | | Tripod Mount | 1/4 | | Body Material | Glass-nylon composite | | Material, Lens | Germanium, glass | | Distance, Minimum Focusing Distance | 3 | | Field of View, m@100m, horizontal | 28.6x21.5 | | Format of photo files | *JPG | | Video Clip, Resolution | 640x480 | | Video Clip, Format | *.avi | | Built-In Memory, Gb | 8 | | Availability, Built-In Video Recorder | Yes | | Display Resolution, pix. | 640x480 | | Display Type | AMOLED | | Pixel Pitch, m | 17 | | Spectral Sensitivity, m | 8-14 | | Sensor response | LWIR | | Microbolometer Resolution, pixels | 640x480 | | Resolution of photo files | 640x480 | | Pin Type of Power Socket | microUSB | | Field of View, , horizontal * vertical | 16.3x12.3 | | Relative aperture, D/f' | 1:1.2 | | Lens Focus | 38 | | Diameter, Lens, mm | 32 | | Digital Zoom | 2/4/8 | | Optical Characteristic, Smooth digital zoom, x | 1.9-15.2 | | Magnification | 1.9 | | Defective Pixel Repair Option | Yes | | Integrated Wi-Fi | Yes | | Operating modes | 3 | | Connector Type, USB | microUSB | | Frame Rate, Hz | 50 |
Adult-size heat detection up to 1,475 yds.
Onboard video recorder with 8gb internal storage
Built-in WiFi and Stream Vision App - Observe, Stream, Transfer, Upgrade
IPX7 waterproof, dustproof, fogproof performance
1.9-15.2 variable magnification
Detailed 640x480px resolution
8-Color viewing palette
Lightning fast 50Hz refresh rate
Integrated accelerometer
Stadiametric rangefinder
8-hr rechargeable battery supply
High resolution AMOLED display
Updatable software
Ultra-easy operator interface
Wide operating temp range of -13 - 122
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Description

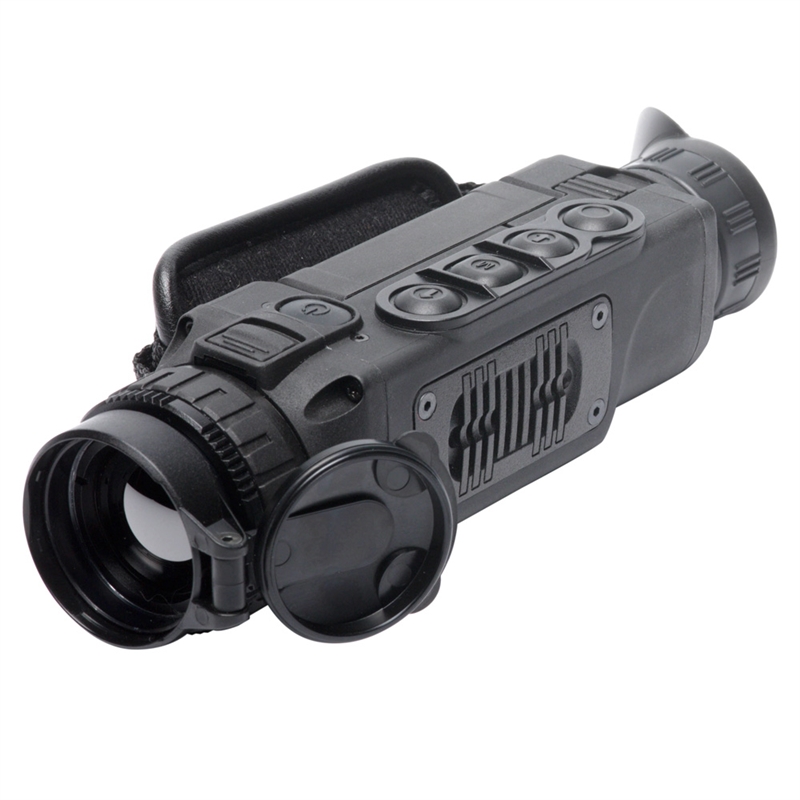

The Pulsar Helion XP38 Thermal Monocular turn up the heat on hunting, surveillance and search & rescue with lightweight heat-detecting convenience, built-in video recorder with 8gb of onboard storage and up to 17?m 640x480px resolution. Fogproof, dustproof and IPX7 waterproof-rated protection and a frost-resistant AMOLED display keep the Helion performing flawlessly in extreme conditions with temperatures ranging from -13 to 122 while the integrated Wi-Fi and compatible Stream Vision app offers wireless display monitoring from smartphones and tablets, streaming video, data transfers and operating system upgrades. The Hellion XP38 boasts a robust 8-color palette, including popular white hot and black hot; adult-size heat signature detection up to 1,475 yds.; 1.9-15.2 variable magnification 50Hz refresh rate; ergonomic button locations and ultra-easy user interface. The Helion XP38 Thermal Monocular even includes an accelerometer, stadiametric rangefinding, rechargeable 8-hr battery pack and convenient carrying case.
|
|
|
|
|
|
|
