| Generation | CF-Super | | Magnification Ratio, times | 0.45 to .5 | | Photocathode, Useful Diameter | multi-alkaline photocathode | | Photocathode, Integral Sensitivity, typical | 200 | | Conversion Ratio, relative unit, range / typical value | 900 | | Reliability Standard, Hrs | 1500 | | Magnification | 1 | | Diameter, Lens, mm | 20 | | Lens Focus | 27 mm | | Relative Aperture | 1:1.35 | | Field of View, degree | 36 | | Field of view, m@100m | 65 | | Field of view, ft@100yd | 195.7 | | Distance, Minimum Focusing Distance | 1 m | | Eye Relief | 12 mm | | Diameter, Exit Pupil | 6 | | Diopter Adjustment | 4 | | Focusing Type of Distance | objective | | Built-in-IR-Illuminator | yes | | IR Wavelenght, nm | 805 | | Range of Detection, yd / m (Object (Human = 1.7*0.5m) | 90 | | Power Supply | 3 Volts | | Battery Type | 2xAAA | | Battery Life, (with IR), hour | 20 | | Battery Life, (w/out IR), hour | 50 | | Material, Lens | glass | | Body Material | glass-nylon composite & metal | | Tripod Mount, inch | 1/4 | | Type of Accessory Mounting Rails | Weaver | | Operating Temperature | -20 +40 C | | Level of Protection (acc. to IEC 60529) | IP65 | | Nitrogen Purged | no | | Waterproof | no | | Remote Control | no | | Length | 163 mm | | Width (in/mm) | 113 mm | | Height (in/mm) | 60 mm | | Distance, Interpupillary, in/mm | 64 mm | | Weight (without batteries) oz | 23 | | Warranty Period | 3 |

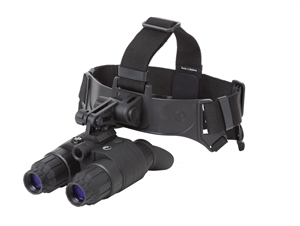

Dual tube binoculars for depth perception
CF-Super technology
Improved resolution over Gen 1 technology
Ultra durable, ergonomic housing
Integrated IR illuminator with adjustable brightness
50 hour battery life (w/o IR)
Environmentally protected from rain and dust, IP65
|
