Magnification | 5 when used with Pulsar 5x32 Monocular | Magnification | Equals to the daylight optical device/ riflescope's magnification when used with a daylight optical sight / device | Diameter, Lens, mm | 50 | Lens Focus, mm | 50 | Relative aperture, D/f' | 1:1 | Field of View, , horizontal * vertical | 5 | Field of view, m@100m | 8.7 | Field of view, ft@100yd | 26.1 | Distance, Minimum Focusing Distance | 5 m | Diameter, Exit Pupil | 30 mm | Focusing Type of Distance | internal | Resolution, Lines per mm | >50 | Range of Detection, m (Object 1,7m High, Illuminatuin Level 0,05 lux("1/4 moon") | 400 | Emitter | Laser | IR Wavelenght, nm | 915 | Equivalent IR Power, mW | 90 / 110 / 150 variation range | Beam Divergence | 4.5 to 7 degree | Power Supply | 3.7 divided by 6 | Battery Type | 4xAA | Battery Life, (w/out IR), hour | 2 | Battery Life, (with IR), hour | 1.5 | External Power Supply | DC 8.4 divided by 15 | Remote Control | wireless | Operation | 2.4 GHz frequency of wireless remote control | Operation | 3 voltage of wireless remote control- V | Battery Type | CR2032 wireless remote control | Click value (MOA) | .1 m@100m | Click value (MOA) | 1300 range- m@100m | Material, Lens | glass | Body Material | glass-nylon composite | Operating Temp, F/C | -20 to 50 | Level of Protection (acc. to IEC 60529) | IPX3 weather resistant | Nitrogen Purged | no | Waterproofness | no | Shockresistance, on Rifled Weapon, J | 6000 | Warranty Period | 3 year | Length (in/mm) | 9.7 / 246 when assembled with 5x32 Monocular | Width (in/mm) | 3.2 / 82 | Height (in/mm) | 4.6 / 117 |
Converts daytime riflescope into night vision riflescope (adapters sold separately)
Electronic windage/elevation adjustment for precision shooting
Converts into a 10x monocular
Fine image quality and resolution
Resistant to bright light exposure
Modular laser IR illuminator with three-step power adjustment
Built-in and external power supply
Lightweight and durable composite housing
Weather resistant
Intuitive easy-to-use interface
Wireless remote control
Wide range of operating temperature
Internal focusing
Video output
|
|
|
|
|
|
|
|
|
|
|
|
|
Description

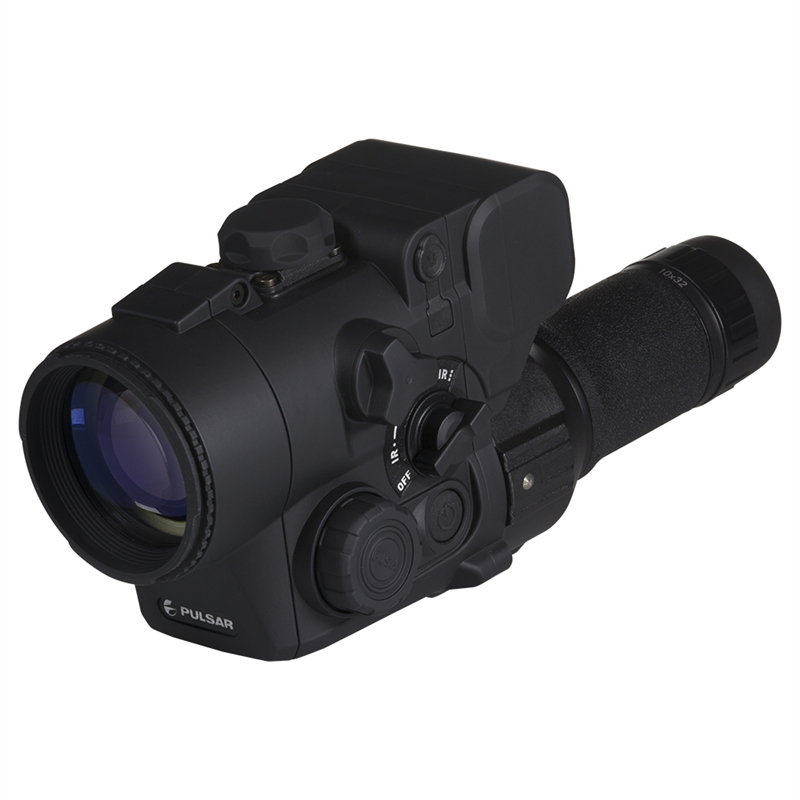

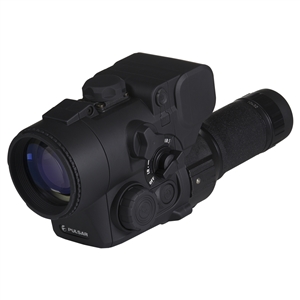

The Pulsar DN55 is a two-in-one package with the highly sophisticated Pulsar DFA75 (Digital Front Attachment) and a 10x32 monocular attachment for increased application. With installation of the included monocular attachment, the DFA75 can be used not only to convert a daytime riflescope into a powerful digital night vision riflescope, but into a hand-held 10x32 digital night vision monocular as well. The attachment clicks tightly into the eyepiece on the back of the DFA, transforming the entire device into a lightweight monocular. Delivering highly vivid images in challenging lighting conditions, the versatile DFA75 either as a riflescope or monocular is a perfect match for security and surveillance, as well as scanning for prey in pitch black darkness.
|
|
|
|
|
|
|
