SENSOR SPECIFICATIONS
Sensor Type BAE MicroIR VOx Uncooled Microbolometer
Sensor Resolution
640x480 (actual 640x480) 307,200 pixels
SpectralL Band 8 - 12 μm
Pixel Pitch 12 μm
Sensitivity <50 mK

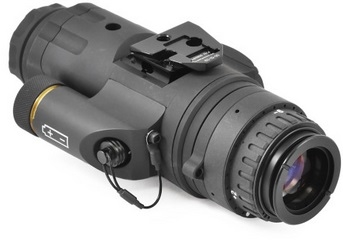

Frame Rate 60HZ - IR PATROL M300W
Calibration NUC (Non Uniformity Correction)
OPTICAL SPECIFICATIONS
Lens Type Germanium
IR Window Germanium with Protective DLC Coating
Focal Length 19mm
F/# f/1.1
Transmission 88%
Eye Relief 27mm
Diopter -6/ +4
DISPLAY SPECIFICATIONS
Type Emagin OLED Monochrome Display
Resolution VGA 640x480
Output 10 bit Digital Monochrome
Contrast >10,000:1
Frame Rate 60HZ / 30HZ Selectable
SYSTEM SPECIFICATIONS
Magnification 640x480 19mm - 1.x optical 8x digital
Field of View 640x480 19mm - 22° optical 3° digital
Dimensions 5.95" L x 2.2" H x 2.95" W M250/M300W
Weight >454 grams
Head Mountable
M250 / M300W Only
Start Up Time >4 Seconds
FEATURES SPECIFICATIONS
User Interface Thumb Stick Controller
Polarity MaxPOL White Hot / Black Hot
Edge Detect Edge Detection Mode
Image Capture special cable needed to download LE100C / M250 / M300W Only
Electronic Zoom Up to 8X Zoom Depending on System
Laser Rail Built in Laser Interface Picatinny Rail
DFC - Digital Focus Enhances and Sharpens Imagery
Video Output RS-170 NTSC Analog Video Special Cable
required
DFC - Digital Focus Enhances and Sharpens Imagery
Contrast User Adjustable Contrast
Weapon Mountable M300W Only Basic Crosshair and Clip-on Mode M300W only
