Overview

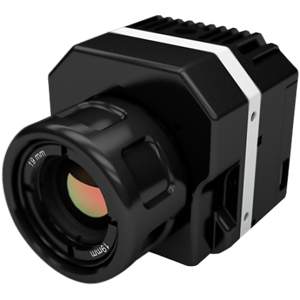

Thermal Imager Uncooled VOx Microbolometer
Resolution 336x256 | 30/60 FPS*
Lens Options
9 mm; 35° x 27°
Spectral Band 7.5 - 13.5 μm
Full Frame Rates 30 Hz (NTSC); 25 Hz (PAL)
Export to some countries require an export license. See our Exporting Conditions page for more information.
Exportable Frame Rates 7.5 Hz (NTSC); 8.3 Hz (PAL)
Physical Attributes
Size 2.26" x 1.75" (57.4 x 44.4 mm) (including lens)
Weight 3.25 - 4 oz (Configuration Dependant)
Precision Mounting Holes Two M2x0.4 on each of two sides & bottom
One 1/4-20 threaded hole on top
Image Processing & Display Controls
Image Optimization for sUAS Yes
Digital Detail Enhancement Yes - Adjustable in GUI
Invertable Image? Yes - Adjustable in GUI
Polarity Control (black hot/white hot) & 2 Color Palettes Yes - Adjustable in GUI
Color Palettes (Selectable in GUI) 1 - Whitehot, 2 - BlackHot, 3 - Fusion, 4 - Arctic, 5 - Lava, 6 - GreyRed, 7 - Ironbow, 8 - InstAlert, 9 - GreenHot
Interfacing
Input Power (max 250mA during shutter) 5.0 VDC +/- 10%
Power Dissipation (steady state) <1.2 W ˜1.0 W
Environmental
Operating Temperature Range -20°C to +50°C
Non-Operating Temperature Range -55°C to +95°C
Operational Altitude +40,000 feet
